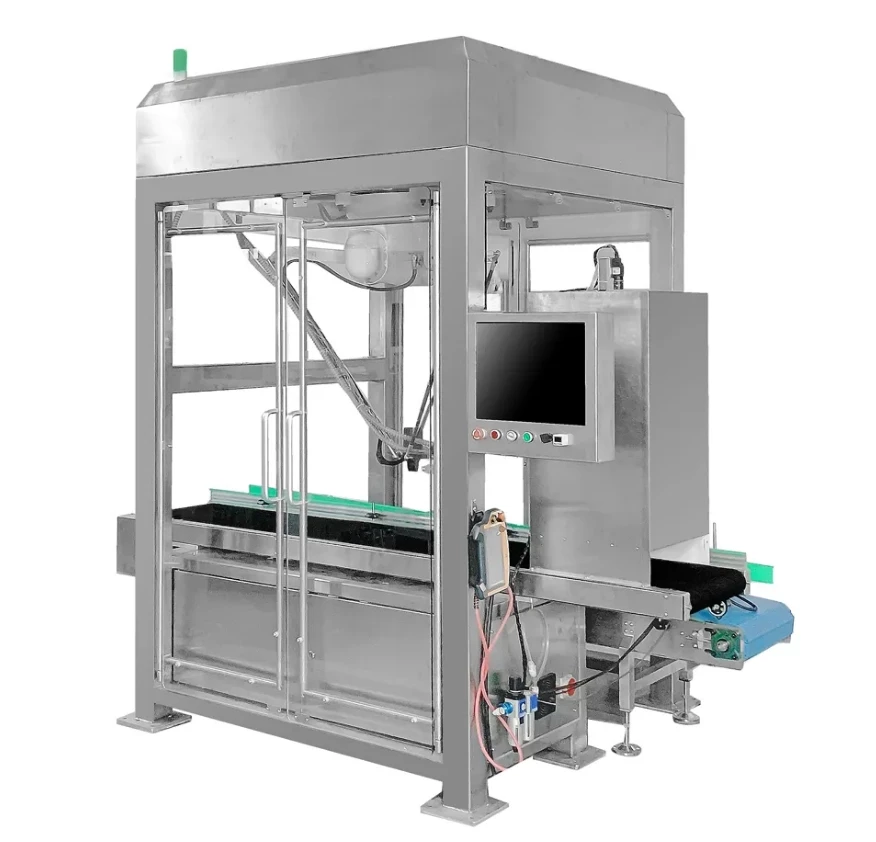

Top Load Case Packer
Brand: Warsonco
MOQ: 1 Pieces
Delivery time: 15 Day
High-Speed: Up to 120PPM
Cost Effective
Easy to Operate,Modular System
Certificate: ISO, CE
Low Maintenance
Application: Food, Beverage, Pharmaceutical, Consumer Electronics
Warranty: 1 Year, Free Lifelong Technical Support
Product Details
Features:
- Fast Speed (Up To 120PPM)
- High Accuracy(+/-0.01mm)
- Modular System
- Easy to Use
- Low Maintenance
Specifications:
| Item No.: | WSC-TL1000S | WSC-TL1000C |
|---|---|---|
| Frame Material: | Stainless Steel | Carbon Steel |
| Speed | 40-150PPM | 40-150PPM |
| Power | 5kw | 5kw |
| Max load | 5kg | 5kg |
| Repeat Positioning Accuracy(mm) | ± 0.1 mm | ± 0.1 mm |
| Angular Positioning Accuracy | ＜0.05° | ＜0.05° |
| Power Supply | 200-240V 50/60Hz | 200-240V 50/60Hz |
| Noise Level | ＜65db | ＜65db |
| Protection Rating | IP54 | IP54 |
| Working Temperature | 1～40°C | 1～40°C |
| Humidity Range | 5%～90%(No Condensation) | 5%～90%(No Condensation) |
| Life Span | 20,000Hours + | 20,000Hours + |
| 1-3rd Axis Motor | Panasonic | Panasonic |
| 1-3rd Axis Reducer | Harmonic/Nidec | Harmonic/Nidec |
| Fourth Axis Motor | Panasonic | Panasonic |
| Fourth Axis Reducer | LeaderDrive | LeaderDrive |
| Controller | KEBA | KEBA |
| HMI | KEBA | KEBA |
| Vision System | Hikvision | Hikvision |
| Applying Product Size | L10*W10*H5mm-L400*W280*H100mm | L10*W10*H5mm-L400*W280*H100mm |
| Applying Case size | L100W100H100 MM — L480W400H400MM | L100W100H100 MM — L480W400H400MM |
| GW: | 1200KG | 1200KG |
| Packing Size with Wooden Case | L2700*W1750*H2200mm | L2700*W1750*H2200mm |
